適用流體 | 蒸汽、水、沒、弱酸、氣體等 | |
最高溫度 | ≤600℃ | |
線速度 | ≤10M/S | |
材質 | SUS304、0Cr18Ni9、、SUS316(L)、00Cr17Ni14Mo2 |
FEY型金屬密封疊環規格型號 | ||||||

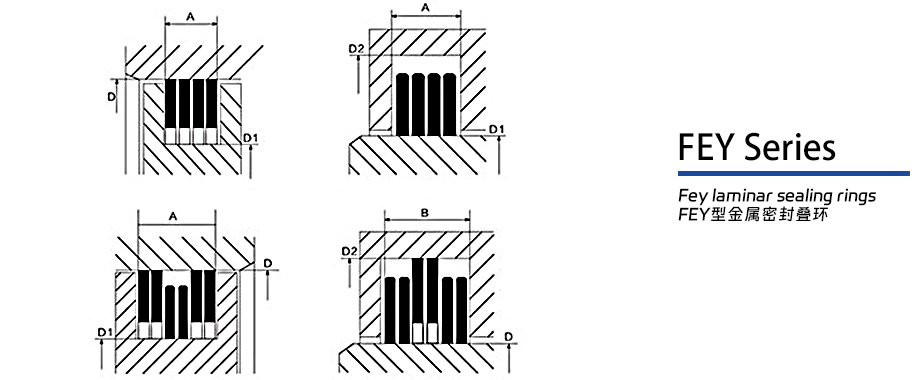

孔徑 Aperture D | 密封圈尺寸 Seal size RBRD | 槽 A 寬 B | 槽徑 Slot diameter D1 | 槽徑 Slot diameter D2 | ||
15-24.5 | 1.0 1.3 | 2.96 4.3 | D-2.6 | D+2.6 | ||
25-29.5 | 1.2 1.3 | 2.9 4.3 | D-3.0 | D+3.0 | ||
30-35.5 | 1.5 1.3 | 2.9 4.3 | D-3.6 | D+3.6 | ||
36-42.5 | 1.8 1.3 | 2.9 4.3 | D-4.2 | D+4.2 | ||
43-48.5 | 2.2 1.45 | 2.8 4.3 | D-4.2 | D+4.2 | ||
43-48.0 | 2.2 1.45 | 3.2 4.8 | D-5.0 | D+5.0 | ||
49-51.5 | 2.4 1.45 | 3.2 4.8 | D-5.4 | D+5.4 | ||
52-59.5 | 2.6 1.45 | 3.2 4.8 | D-5.0 | D+5.0 | ||
60-69.5 | 2.8 1.65 | 3.6 5.4 | D-6.2 | D+6.2 | ||
70-74.5 | 3.1 1.65 | 3.6 5.4 | D-6.8 | D+6.8 | ||
75-79.5 | 3.3 1.65 | 3.6 5.4 | D-7.6 | D+7.6 | ||
80-89.5 | 3.5 1.65 | 3.6 5.4 | D-7.6 | D+7.6 | ||
90-99.5 | 3.8 1.65 | 3.6 5.4 | D-8.2 | D+8.2 | ||
100-104.5 | 4.1 1.65 | 3.6 5.4 | D-8.8 | D+8.8 | ||
105-109.5 | 4.3 1.96 | 4.3 6.4 | D-9.2 | D+9.2 | ||
110-119.5 | 4.6 1.96 | 4.3 6.4 | D-9.8 | D+9.8 | ||
120-129.5 | 5.0 1.96 | 4.3 6.4 | D-9.8 | D+9.8 | ||
130-149.5 | 5.5 1.96 | 4.3 6.4 | D-11.8 | D+11.8 | ||
150-170.0 | 6.0 2.0 | 4.4 6.5 | D-13.0 | D+13.0 | ||
150-170.0 | 6.0 3.0 | 6.5 9.6 | D-13.0 | D+13.0 | ||
171-199.0 | 7.0 2.0 | 4.4 6.5 | D-15.0 | D+15.0 | ||
171-199.0 | 7.0 3.0 | 6.5 9.6 | D-15.0 | D+15.0 | ||
200-259.0 | 8.0 2.4 | 5.3 7.8 | D-18.0 | D+18.0 | ||
200-259.0 | 8.0 2.4 | 6.5 9.6 | D-18.0 | D+18.0 | ||
260-139.0 | 9.0 3.0 | 6.5 9.6 | D-20.0 | D+20.0 | ||
320-399.0 | 10.0 3.0 | 6.6 9.8 | D-22.0 | D+22.0 | ||
400-439.0 | 11.0 3.0 | 6.6 9.8 | D-24.0 | D+24.0 | ||
440-600.0 | 12.0 3.0 | 6.6 9.8 | D-26.0 | D+26.0 | ||
440-600.0 | 12.0 5.0 | 10.6 15.9 | D-26.0 | D+26.0 | ||
601-699.0 | 14.0 5.0 | 10.8 16.2 | D-32.0 | D+32.0 | ||
700-799.0 | 16.0 5.0 | 10.8 16.2 | D-36.0 | D+36.0 | ||
800-899.0 | 18.0 5.0 | 11.0 16.5 | D-40.0 | D+40.0 | ||
900-990.0 | 20.0 5.0 | 11.0 16.5 | D-44.0 | D+44.0 | ||
1000-1300.0 | 22.0 5.0 | 11.0 16.5 | D-48.0 | D+48.0 |
配合公差 With tolerances:mm | ||||
尺寸分段 | 15- | 105- | 150- | 440- |
104.5 | 149.5 | 439 | 1300 | |
RB | +0.10 | +0.10 | +0.12 | +0.20 |
-0.10 | -0.20 | -0.30 | -0.40 | |
RD | +0.08 | +0.10 | +0.12 | +0.14 |
-0.04 | -0.06 | -0.08 | -0.10 | |
A-B | +0.10 | +0.15 | +0.20 | +0.25 |
-0.0 | -0.0 | -0.0 | -0.0 | |
D1 | +0.0 | +0.0 | +0.0 | +0.0 |
-0.20 | -0.25 | -0.30 | -0.40 | |
D2 | +0.20 | +0.25 | +0.30 | +0.40 |
-0.0 | -0.0 | -0.0 | -0.0 |
